Large Caliber Wireless H/L Voltage Current Meter Tester Online AC Current Monitor with Measuring Range 0.00A～9999A(50/60Hz auto) Resolution 0.01A

QIUSUO Large Caliber Wireless H/L Voltage Current Meter Tester Online AC Current Monitor with Measuring Range 0.00A～9999A(50/60Hz auto) Resolution 0.01A Batteries are not included during the shipment!!! Technical Specification Power Supply:6V DC(LR03×4 alkaline dry batteries) Test Mode:Non-contact U-type CT Transmission Mode:433MHz wireless transmission, transmission distance is about 100 meters Display Mode:4-digit LCD display, backlight function, suitable for measurement in dark place LCD size:47mm×28.5mm Meter Dimension:Detector:107mm×252mm×31mm; Receiver:78mm×165mm×41mm CT Size:68mm Insulation Rod Dimension:45mm, Contraction state: 850mm; Stretched state: 3600mm. Insulation Rod Voltage Level:110KV Sampling Rate:2 times / second Measurement Range:0.00A~9999A(50/60Hz automatic) Resolution:0.01A Shift:0.00A~9999A automatic shift Test Accuracy:±2%±5dgt (The wire is near the center of the bottom end of the U-type clamp,23℃±2℃) Position Error:The measured conductor should be located as close as possible to the center of the bottom end of the U-type clamp. Data Storage:99 groups , in storage process “MEM” symbol display, “FULL” symbol flash display indicate storage is full Line Voltage:Bare wire test below 60KV (operated with insulation rod, The telescopic insulation rod is fully opened) Data Hold:In general test mode, press HOLD key to hold data, “HOLD” symbol display. press HOLD Key once again to cancel this function Data Access:“MR” symbol display, it can look over all the stored data Overflow Display:Exceed measurement range overflow function: “OL A” symbol display Weight:Detector:235g(with Battery ), Receiver:280g(with Battery ), Meter total Weight: 2300g (including insulation rod and battery) Working Temperature:-10℃ ~ 40℃; Below 80%Rh

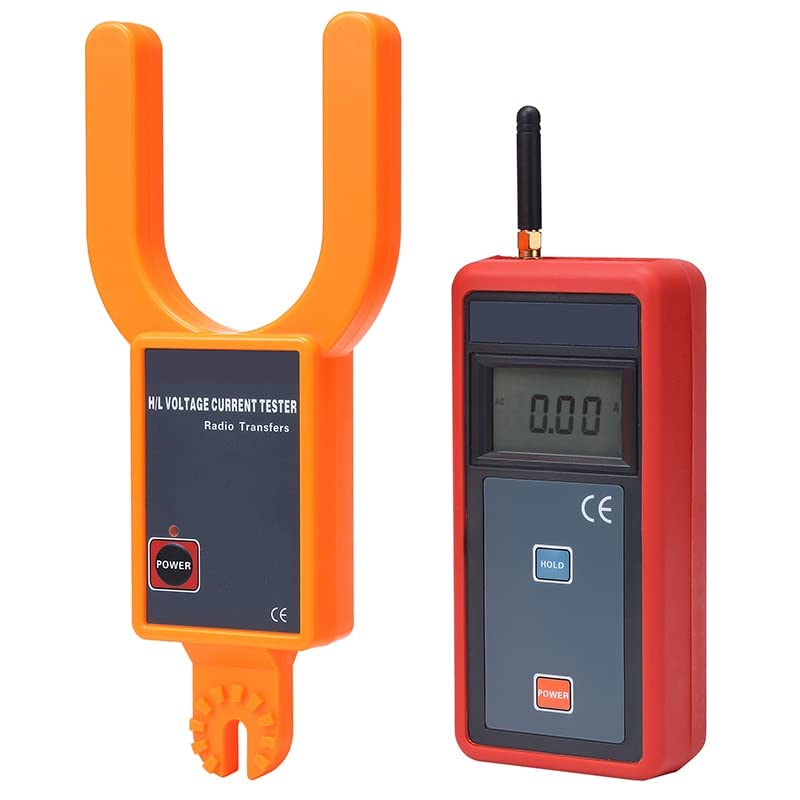

• The large diameter wireless high and low voltage fork ammeter is a new generation of high-voltage ammeter, no need to contact, close to measure the current value;
• The large diameter wireless high and low voltage fork ammeter is a large range ammeter, readable range is 9999A, resolution up to 0.01A;
• The large diameter wireless high and low voltage fork ammeter adopts wireless transmission, current information can be received within 100 meters, to enhance the convenience of operation.

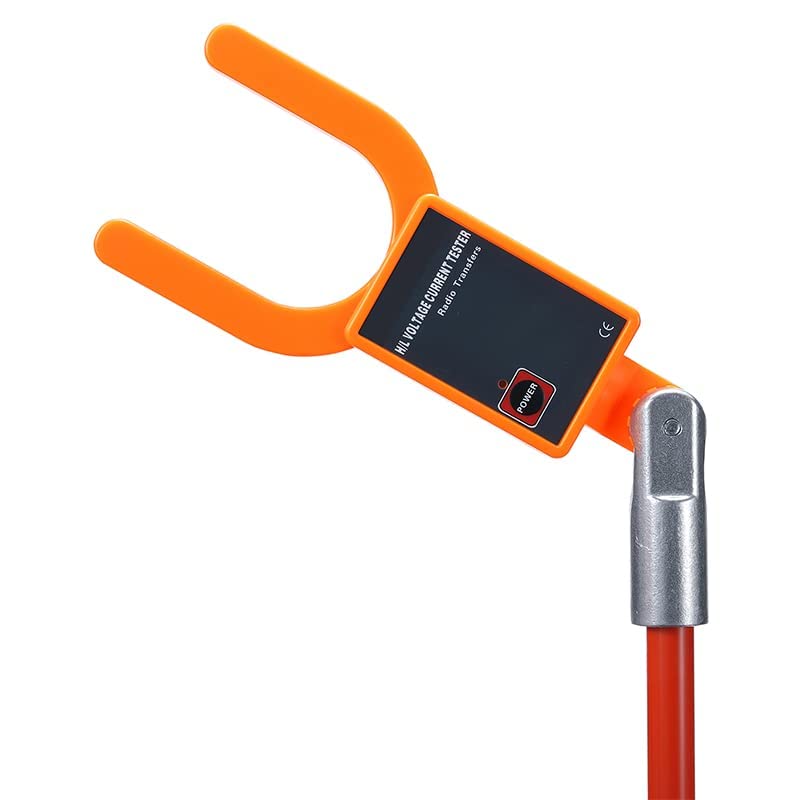

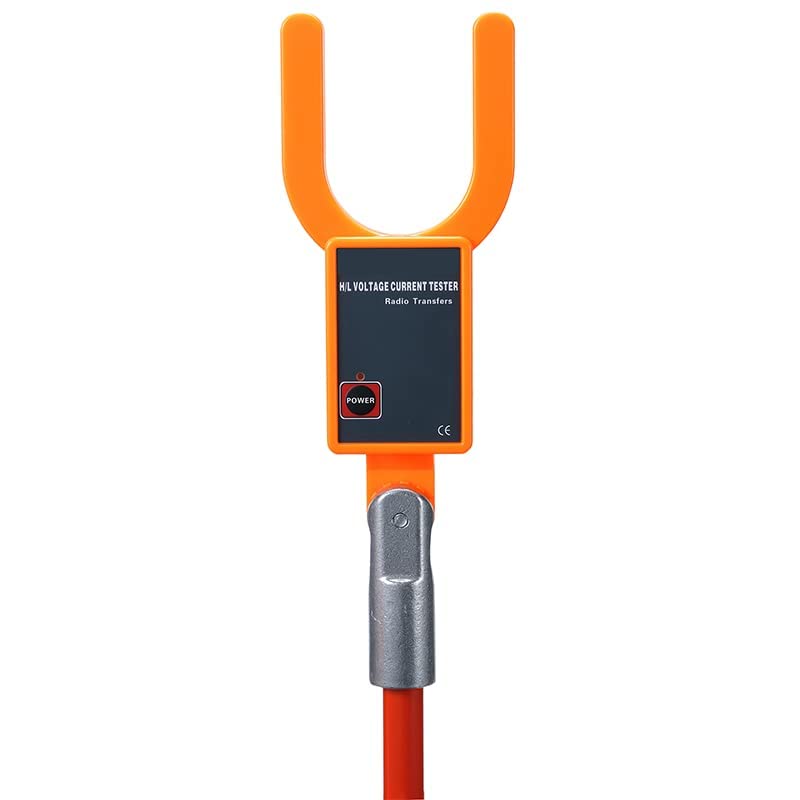

• The large-diameter high-low-voltage fork ammeter is used for high-voltage line current measurement measurements below 60kV (need to be connected to the insulating rod to use), in the 600V can not use the insulating rod, directly use the fork ammeter test.
• The meter also has the functions of data retention and data storage. Insulation pole is lightweight, with moisture-proof, high temperature, impact resistance, bending resistance, high insulation, scalable and so on.
